Products

Central Venous Catheterization Ultrasound Training Model

Model TYE1510.2
Product size(mm)700×500×160

Outline

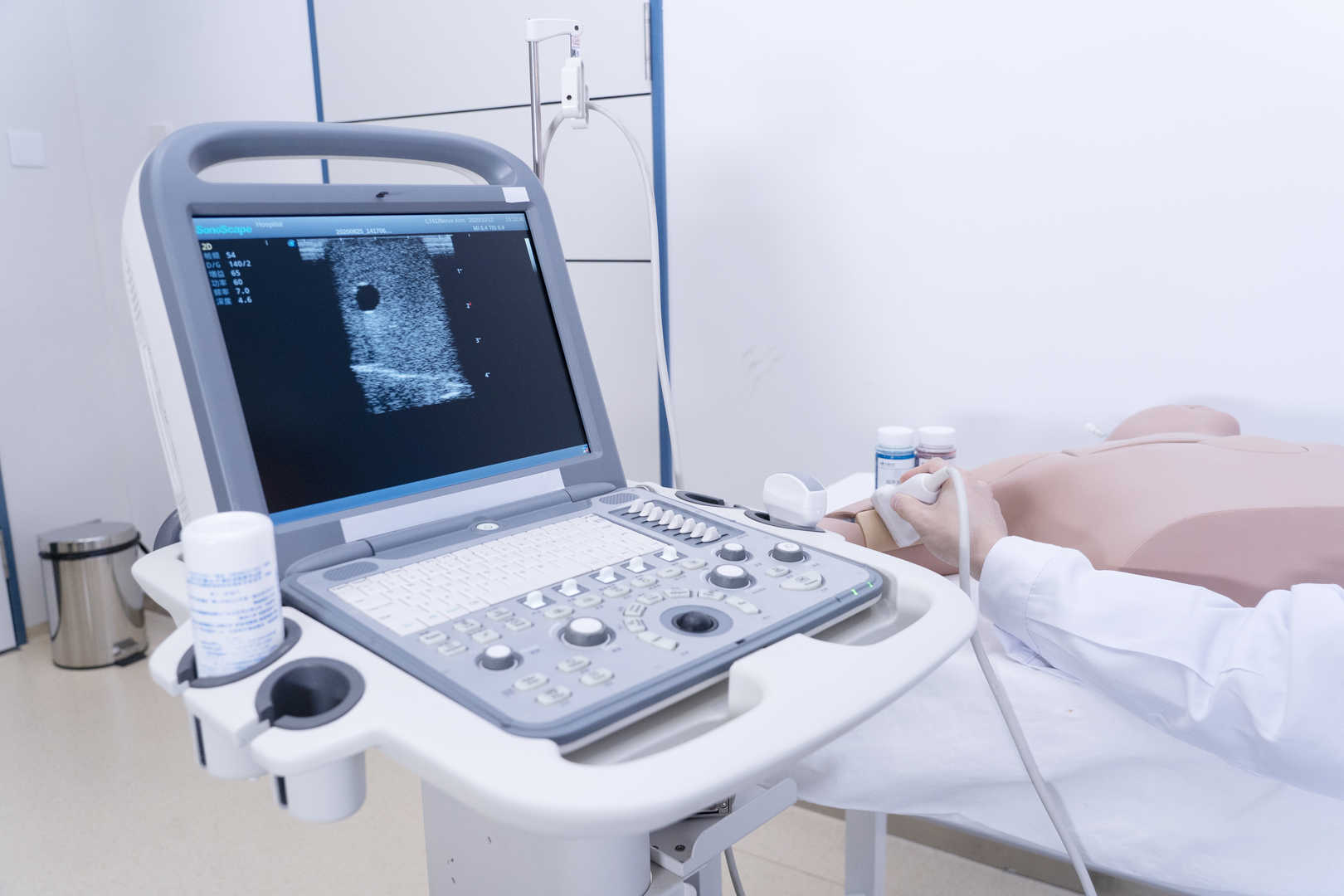

It is a model from the earlobe plane to the umbilical plane with its head turned to one side. It's put in a standard central venipucture and catheterization position, including landmarks such as right arm, clavicle, ribs, sternocleidomastoid muscle, sternoclavicular joint, etc. It can be used for ultrasound-guided subclavian vein and internal jugular vein puncture and catheterization. The model's arm can be used for ultrasound-guided PICC catheter placement.


Skills Gained

· Subclavian vein puncture and catheterization

· Internal jugular vein puncture and catheterization

· PICC catheter placement


Features

 · Anatomy:

  Right internal jugular vein, right common carotid artery, superior vena cava, right brachiocephalic vein, right brachiocephalic trunk, right subclavian vein, right subclavian artery, etc.

       · Key Features:

1)  The module for central venous catheterization is transparent, allowing users to clearly see the course and adjacent relationship of blood vessels

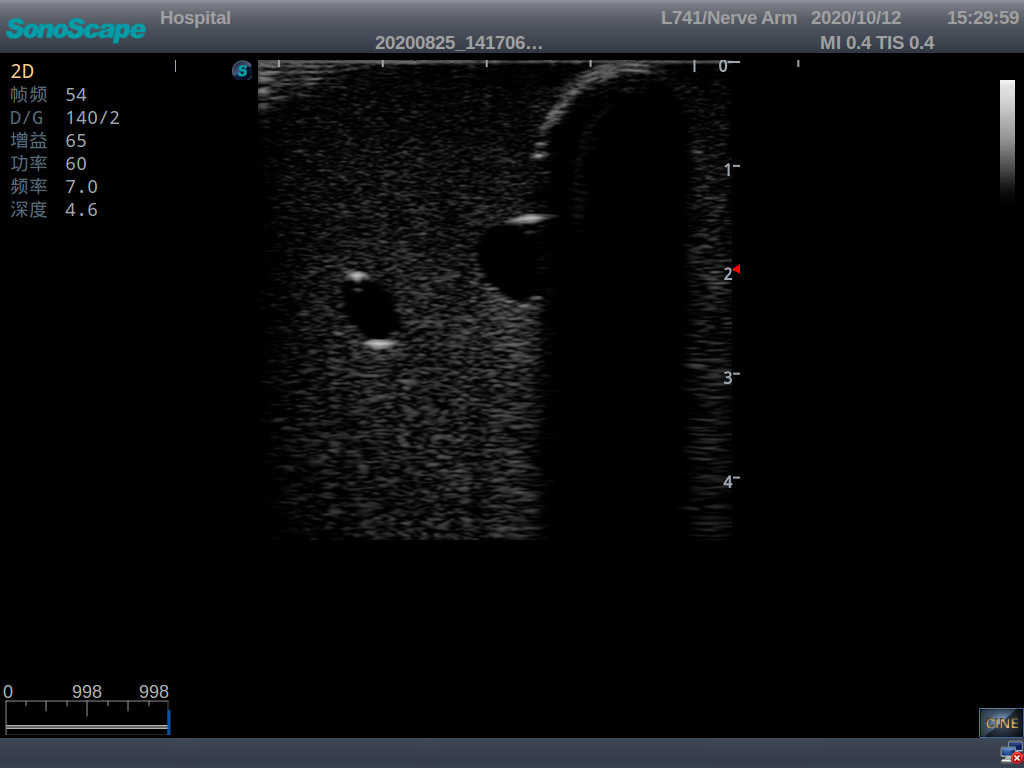

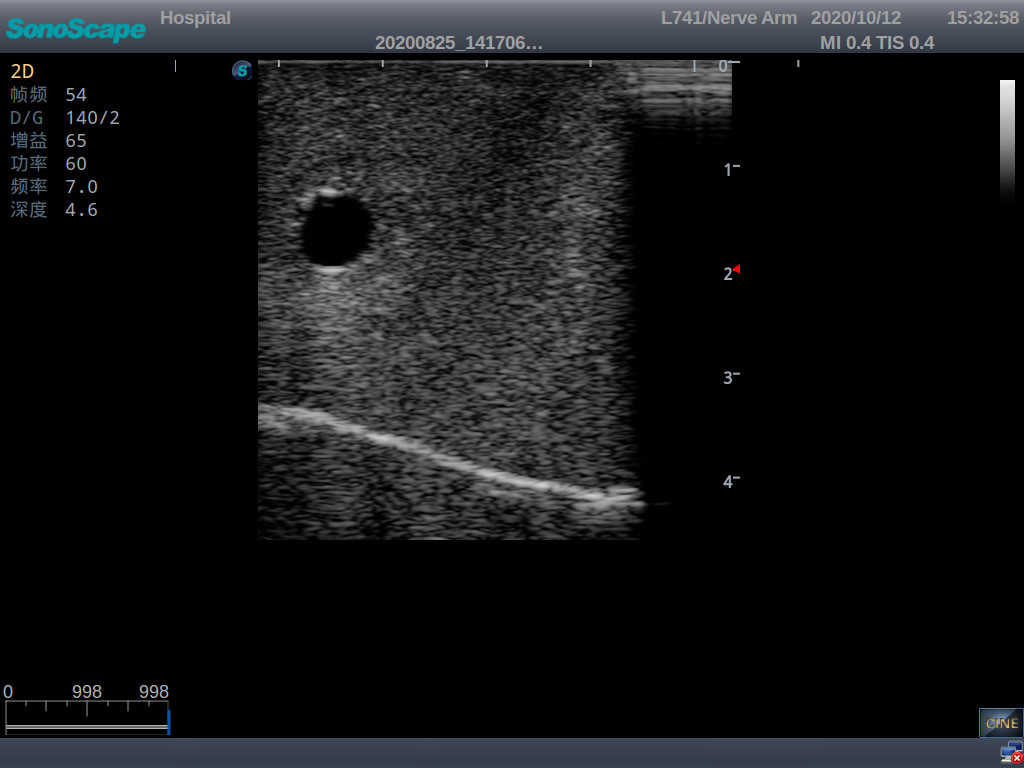

2)  The puncture module supports using a clinical real ultrasound machine to observe clear images such as right internal jugular vein, right common carotid artery, superior vena cava, right brachiocephalic vein, right brachiocephalic trunk, right subclavian vein, right subclavian artery, etc.

3)  The puncture pad at the arm is made of high-molecular ultrasound material, close to real skin. It can support the use of real ultrasound machines, and the images of tissue structures (skin, subcutaneous tissue, blood vessels) under ultrasound are clear and real

4)  A sense of “pop” can be felt when the vascular puncture is successful, and the outflow of venous blood can be simulated

5)  The guide wire’s march can be observed under the guidance of ultrasound, and also whether the catheter is placed correctly can be detected

6)   All the puncture modules are replaceable
